A power outage can disrupt your entire home. The lights go out, appliances stop running, and your daily routine is interrupted. If you rely on electricity for work, comfort, or medical needs, even a short outage feels disruptive.
The Generac Guardian 22 Kw Standby Generator helps you avoid that. It keeps your home powered automatically, so you can stay comfortable and keep everything running during an outage.
This guide explains its standout features, benefits, installation process, and what to consider before adding one to your property.
What Is a Standby Generator?
A standby generator automatically supplies electricity when the grid goes down. It starts on its own and runs until utility service is restored. You don’t need to refuel it or connect extension cords during an outage.
Unlike a portable generator, a standby system is installed permanently outside your home. It connects directly to your electrical panel and your natural gas or propane line. This makes it reliable and ready whenever it’s needed.
Choosing a standby generator keeps your home powered without interruption. Lights stay on, heating and cooling keep running, and electronics remain protected. That’s why many people prefer it over smaller portable units.
Key Features of the Generac Guardian 22 Kw Standby Generator
The Generac Guardian 22 Kw Standby Generator provides automatic backup power to keep your home running when the utility grid fails. It starts on its own during a power outage and supplies electricity until utility service returns.
This home standby generator delivers best-in-class power with less than 5% total harmonic distortion. That clean output protects sensitive electronics like computers, televisions, and appliances.
Below are the standout features that make this generator reliable and easy to monitor:
- True power technology: Produces clean, stable electricity for sensitive electronics and appliances.
- Generac’s G-force engine: A purpose-built engine that runs at lower revolutions per minute (RPM) to reduce wear. It also requires less routine maintenance than a competitive engine.
- RhinoCoat powder-coated finish: A corrosion-resistant aluminum enclosure that shields the unit from harsh weather conditions outdoors.
- WiFi-enabled mobile link remote monitoring: Lets you stay connected by checking the current operating status and maintenance alerts on your smartphone, tablet, or PC.
- Automatic backup power: Starts automatically and supplies electricity to keep your family safe and your home running without interruption.
These features work together to deliver reliable performance and whole-house protection.
Generac Guardian 22 Kw Standby Generator Specifications
The Generac Guardian 22 Kw Standby Generator is engineered and assembled in the United States, using both domestic and imported parts. It provides reliable, clean backup power during extended outages, keeping sensitive electronics and appliances safe.
Power Output and Fuel Options
This standby generator delivers 22,000 watts on liquid propane (LP) gas and 19,500 watts on a natural gas fuel supply. It operates at 120/240 volts, single-phase, with a frequency of 60 hertz. Rated amperage is 91.7 amps on LP and 81.3 amps on natural gas.
Fuel consumption is measured at 2.53 gallons of LP gas per hour at 50% load. For natural gas, the usage is approximately 203 cubic feet per hour at the same load. Both fuel options let it run for long periods without needing to refuel.
Engine and Power Quality
The generator features Generac’s overhead valve industrial (OHVI) 999 cubic centimeters (cc) engine, air-cooled, running at 3600 RPM with a 12-volt automatic start. This engine is reliable and requires less routine maintenance, thanks to its purpose-built design for generator use.
True Power Technology keeps harmonic distortion under 5%, protecting sensitive electronics from unstable current.
Enclosure and Size
The aluminum enclosure has a RhinoCoat powder coating to resist corrosion, even in harsh weather. It’s mounted on a composite base and measures 48 inches long, 25 inches wide, and 29 inches high. The weight is about 466 pounds, and it operates at a quiet 67 decibels from seven meters away.
Transfer Switch and Monitoring
The included 200 amp automatic transfer switch is service entrance rated and features smart load shedding to prioritize circuits during high demand. A multilingual LCD display shows operating status and maintenance alerts on the unit itself.
You can also monitor the generator remotely using the free Mobile Link WiFi feature. This lets you easily access information about the current operating status from a smartphone, tablet, or PC.
Warranty and Support
The generator comes with a five-year limited warranty that covers parts, labor, and travel for the first two years. Generac offers 24/7 customer support through its team and authorized service dealer network to assist with any maintenance or repairs.
Benefits of the 22 Kw Home Standby Generator
The Generac Guardian 22 Kw keeps your home powered the moment utility power stops. It starts automatically and runs until utility power returns. This helps you avoid interruptions during storms or unexpected outages.
This generator provides whole-house coverage using its included automatic transfer switch. It powers key systems like lighting, refrigeration, heating, and cooling without manual steps or extra equipment.
Fueling is simple and reliable. The generator connects to an existing LP or natural gas supply, so you never need to store or refill gasoline. It can run through extended outages without requiring attention or extra fuel on your part.
The generator produces clean, steady electricity using Generac generators and engines technology. True Power Technology protects sensitive electronics by maintaining stable voltage and frequency. This reduces wear on appliances and keeps your devices safe.
Monitoring is easy. You can view operating details directly on the multilingual display or use the free Mobile Link feature. This allows you to track operating status and maintenance alerts anytime from your smartphone or computer.
Installation Process of the Generac Guardian 22 Kw
Installing the Generac Guardian 22 Kw is a detailed process that helps achieve reliable and safe operation during a power loss. Working with a professional like W. Danley Electrical guarantees compliance with codes and proper setup.

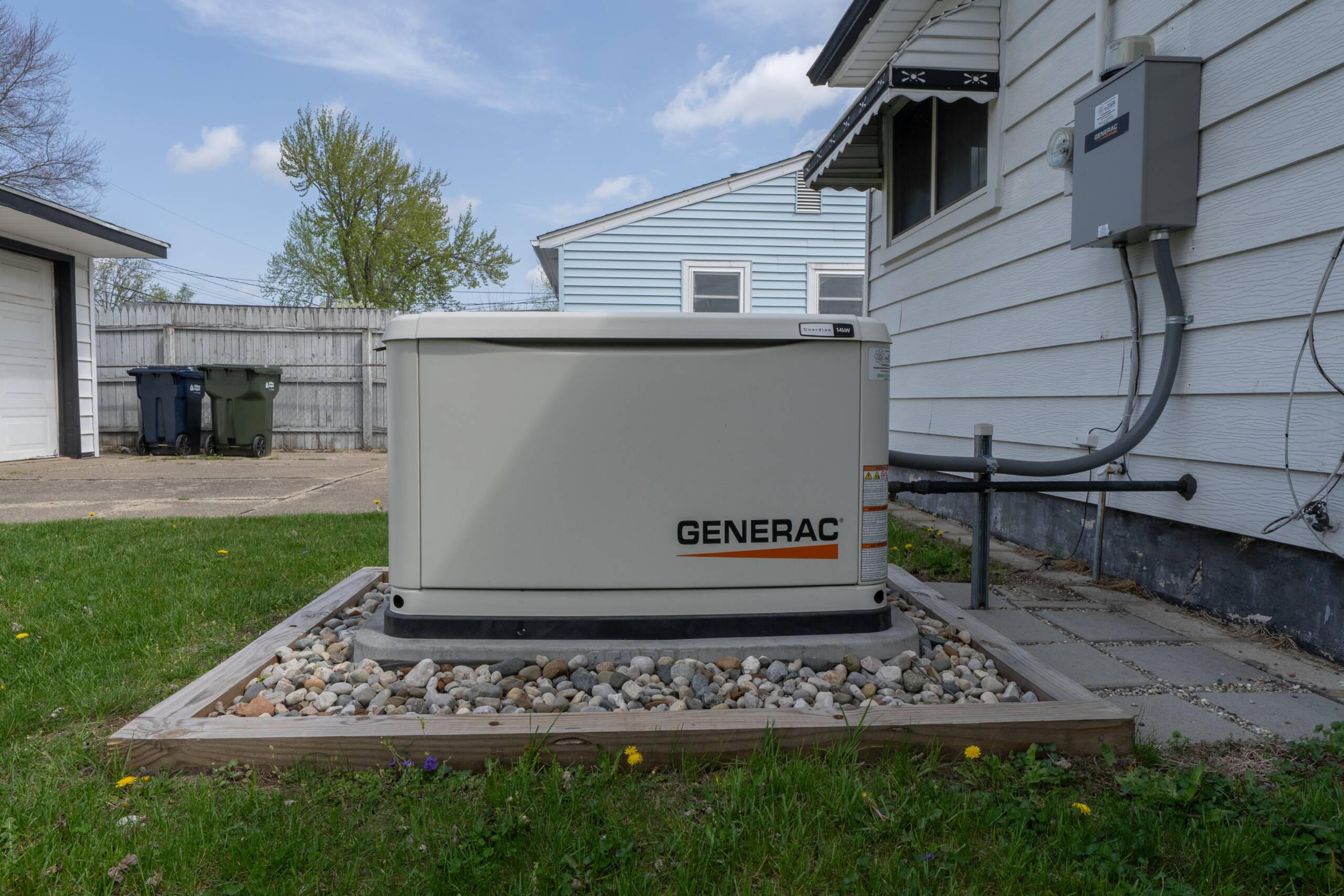

Site Selection and Preparation
First, select a stable, well-drained outdoor location away from sprinklers, downspouts, and standing water. The site should provide at least three feet of clearance from walls to allow airflow and maintenance access. Clear any vegetation and level the ground. Install a base of crushed stone or pea gravel, then place the composite pad where the generator will sit securely.
Unboxing and Positioning
Next, unbox the generator and include a 200-amp automatic transfer switch. Use proper equipment to move the unit into place on the composite pad. Take care to align it correctly for wiring and fuel connections.
Fuel Connection
The generator connects to an existing LP or natural gas fuel line with a shutoff valve and regulator. Local codes must be followed for piping and fittings. The fuel inlet is located on the right rear of the generator, about ten inches above ground level.
Electrical Wiring and Transfer Switch Installation
Install the automatic transfer switch near your home’s main electrical panel. This allows for short, efficient wiring runs. Connect the generator to the transfer switch using flexible conduits. Run wiring into the main panel while sealing wall openings to prevent moisture entry. Ground the unit using an eight-foot rod connected to the chassis.
Battery and Accessories Installation
Inside the generator, install a 12-volt starting battery. Generac recommends a Group 26R 540 cold cranking amps (CCA) minimum wet cell battery. This supplies reliable starting power even during extended outages. Optional accessories, such as a maintenance kit or cold weather kit, can also be added at this stage.
Initial Setup and Testing
Program the generator using the multilingual LCD. Set your preferred language and review startup settings. Perform a full startup test to confirm that the generator starts automatically, transfers power, and supplies proper output. Test the Mobile Link Wi-Fi connection to monitor real-time operating status from your smartphone or computer.
Permitting and Compliance
Obtain any required permits from your local building department or homeowners association before installation. All work must comply with the National Electrical Code and local regulations.
Since this process involves fuel, electrical, and code compliance, it should always be performed by a licensed professional. W. Danley Electrical is a trusted provider of Generac Guardian Series home standby generators. Their team handles the generator installation so your home stays protected during outages.
How to Maintain a 22 Kw WiFi Standby Generator
Regular maintenance keeps the Generac Guardian 22 Kw dependable through the rigors of generator use. Routine care helps it perform during unexpected power loss without problems. Many choose annual service to keep their unit ready.
The multilingual display shows maintenance reminders and alerts if service is needed. You can also use the Mobile Link feature to monitor status and updates remotely from a smartphone, tablet, or computer.
Basic upkeep includes checking oil levels, replacing air and oil filters, and cleaning the aluminum enclosure. A technician can test voltage output and inspect the automatic transfer switch connections during a scheduled visit.
The area around the generator should stay clear of plants, debris, and moisture. This protects the aluminum housing and allows proper airflow. Keeping it clean also extends the life of the enclosure.
Get Backup Power With a Standby Generator 22 Kw—Contact W. Danley Electrical
Don’t wait for another outage to disrupt your life. W. Danley Electrical installs the trusted Generac Guardian 22 Kw standby generator to keep your home running. This brand of home standby uses less fuel, operates at a lower RPM, and protects your sensitive appliances during outages.
Their experts set up the whole house switch WiFi-enabled system so you can monitor your generator anytime. They also install the recommended CCA minimum or group 26R battery to guarantee reliable starts every time.
W. Danley Electrical’s customer support team is ready to help with questions, maintenance, and repairs. They stand by you long after installation is complete.
Request a service estimate from W. Danley Electrical. Make sure your home or business is prepared with a reliable backup power solution.
FAQs About Generac Guardian 22 Kw Standby Generators
Does a Generac standby generator charge its own battery?
Yes. The generator has a built-in charger that keeps the starting battery ready at all times. This is why it’s important to keep the unit connected to utility power even when not running.
How long can you continuously run a standby generator?
You can run it continuously as long as there is fuel and no overheating. The unit is built to handle long runtimes, though periodic checks on oil and coolant levels are recommended during very long outages.
How to reset a Generac standby generator?
To reset the generator, press the off button on the control panel. Wait for a few seconds and press the auto button to restart monitoring. The multilingual display will confirm the reset.
